Adjustable voltage source regulator integrated circuit 7805 positive + Operational amplifier 4558

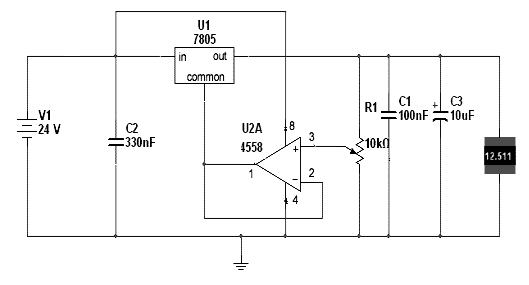

Basic source circuitHere is a basic voltage source circuit in 7805 but adjustable, need a continuous supply unregulated, a filter capacitor, an integrated 7805 + 1 operational amplifier 4558

Adjustable voltage source regulator parts list :
R1 : 10Kohm
C1 : 100nF
C2 : 330nF
C3 : 10uF
U1 : 7805
U2A : op amp 4558

Power supply is an electronic device that supplies electric energy to an electrical load. The primary function of a power supply is to convert one form of electrical energy to another and, as a result, power supplies are sometimes referred to as electric power converters. Some power supplies are discrete, stand-alone devices, whereas others are built into larger devices along with their loads. Examples of the latter include power supplies found in desktop computers and consumer electronics devices.


Tags: 7805 Adjustable voltage regulator Adjustable voltage source op amp 4558 Voltage regulator voltage source voltage source circuit
